Western Blotting Transfer System
eBlot® L1 Fast Wet Transfer System for Mini Gels
eBlot® L1 wet protein transfer system is a highly efficient western blotting transfer system that uses a novel technology (patent pending) developed by GenScript. eBlot® L1 combines the high reproducibility and efficiency of the traditional wet transfer with the speed and convenience of other fast transfer systems. The device allows efficient blot transfer of small, medium and large molecular weight proteins within 9-17 minutes.
Features of eBlot® L1 wet protein transfer system
- Comprehensive: Outstanding performance for small, medium and large proteins
- Convenience: Simultaneously transfer two mini gels
- Compatible: Highly compatible with different types of precast or homemade gels
- Simple: Easy to assemble, one button operation and customizable programs available
The eBlot® L1 system is for wet electroblotting of proteins from mini gels onto PVDF or nitrocellulose membranes. Enjoy a top-quality and rapid protein transfer eBlot® L1 brings you!
Embrace the brand new experience that eBlot® L1 brings you!
Conventional wet transfers are cumbersome, require experience and a great deal of time spent on consumable preparation. The transfer times usually vary from 1 hour to overnight. With eBlot fast wet transfer system, achieve excellent transfer efficiency without sacrificing speed.
eBlot® L1 allows fast and efficient transfer of 1 or 2 mini gels at a time. The setup takes less than 2 minutes and avoids the mess of a traditional wet transfer with our easy to assemble dry sponge sandwich.
Our customizable protocols allows optimal flexibility for your research. The unit comes with standard protocols designed to transfer larger proteins (up to 400kD) or opt for a shorter transfer time for smaller size proteins (up to 100kD).
|Wet Transfer||iBlot||Trans-Blot® Turbo™||eBlot® L1|
|EGFR (170 KD; from left to right: 20 µg, 10µg, 5µg, 2.5 µg, 1.25 µg)|
|Taq (93 KD; from left to right: 125 ng, 62.5 ng, 31.2 ng, 15.6 ng, 7.8 ng)|
|GAPDH (36 KD; from left to right: 10 µg, 5 µg, 2.5 µg, 1.25 µg, 0.25 µg)|

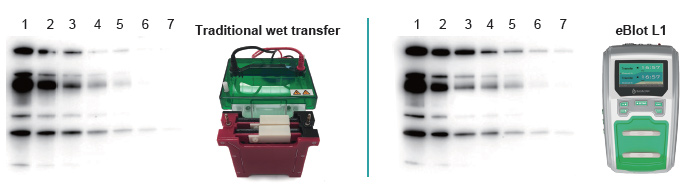

Comparative blotting efficiency with various transfer systems. Three different proteins were transferred on to PVDF membranes using traditional wet transfer, iBlot, Trans-Blot, and GenScript's eBlot L1. The quantities of proteins loaded ranged from 1.25 µg- 20 µg for EGFR, 7.8 ng- 125 ng for Taq, and 0.6 µg- 10µg for GAPDH. For all three proteins, the eBlot® L1 offered superior transfer efficiency compared to other systems. With its high efficiency of transfer, protein concentrations as low as 7 ng for Taq (lane 5), and as high as 20 µg for EGFR(lane 1) could be clearly visualized.
eBlot L1 helped Dr. Antoni Barriento's lab transfer their 1200kD protein in 20 minutes.
"This is the first time we have used one of these fast-transfer instruments. I decided to test this one because uses a wet transfer system, rather than semidry, which yields less efficient transfers of large complexes even when using classical transfer systems."
"Our major interest was to minimize the transfer of assembly mitochondrial oxidative phosphorylation complexes and supercomplexes which are large membrane-embedded macrostructures of sizes that range between ~200 kDa and several megadaltons."
-Dr. Antoni Barrientos,Ph.D.
University of Miami Miller School of Medicine
*Figure prepared by Dr. Alba-Timon-Gomez and Dr. Antoni Barrientos. University of Miami School of Medicine
Blue Native (BN)-PAGE analysis of mitochondrial respiratory chain complexes and supercomplexes using an eBlot fast and efficient wet transfer from GenScript.
Cellular extracts from HEK293T cells treated with non-targeting (NT) or siRNAs targeting the indicated genes involved in complex IV assembly, prepared in the presence of digitonin, were loaded onto a 3-12% native gradient polyacrylamide gel and separated by BN-PAGE. Following electrophoresis, the proteins were transferred to a pvdf membrane using in 24 minutes, using the Blot L1 protein transfer system from GenScript. To visualize mitochondrial respiratory chain complexes and supercomplexes, the membranes where subsequently decorated with antibodies against COX5B (a complex IV subunit), CORE2 (a complex III subunit) and SDHS (a complex II subunit).
eBlot® L1 Fast Wet Transfer System
|Cat. No.||Product Name||Price||Quantity|
|L00686||eBlot® L1 - 1 unit||Quote||1|
|Small Two Pass Screw Cap ( Fit 5L and 10L container)||-||L00741|
|WB Reaction Box||-||L00745|
|Catalog Number||Transfer Buffer||Reactions||Price|
|L00724||eBlot L1 NC transfer kit (membrane excluded)||30 Transfers||$120|
|L00725||Complete eBlot L1 NC transfer kit||30 Transfers||$270|
|L00726||eBlot L1 PVDF transfer kit (membrane excluded)||30 Transfers||$120|
|L00727||Complete eBlot L1 PVDF transfer kit||30 Transfers||$270|
|Liquid container (5L) for eBlot - 1 unit|
|Liquid container (10L) for eBlot - 1 unit|
|Small Two Pass Screw Cap (Fit 5L and 10L container) - 3 pk|
|Transfer Cassette - 2 pk|
|Connecting Tube (10m) for eBlot - 10 m|
|Connecting Tube (20m) for eBlot - 20 m|
|WB Reaction Box - 1 pk|
|Roller for eBlot - 1 Kit|
