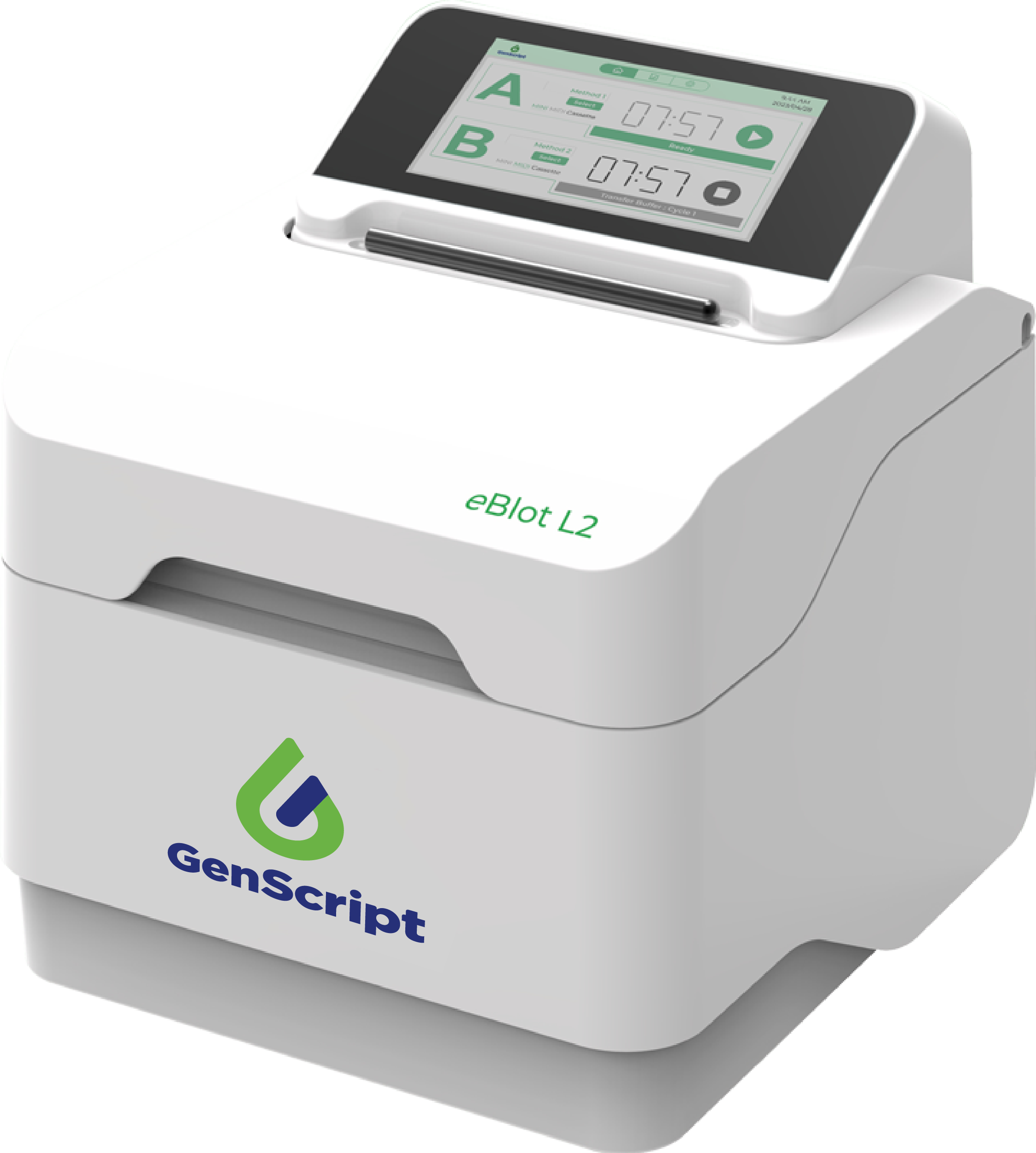

eBlot L2 outperforms other market available transfer methods, particularly for the large molecular weight proteins.
Watch eBlot™ L1 Video
Watch eBlot™ setup Video
Conventional wet transfers are cumbersome, require experience and a great deal of time spent on consumable preparation. The transfer times usually vary from 1 hour to overnight. With eBlot™ fast wet transfer system, achieve excellent transfer efficiency without sacrificing speed.
eBlot™ L1 allows fast and efficient transfer of 1 or 2 mini gels at a time. The setup takes less than 2 minutes and avoids the mess of a traditional wet transfer with our easy to assemble dry sponge sandwich.
Our customizable protocols allows optimal flexibility for your research. The unit comes with standard protocols designed to transfer larger proteins (up to 400 kD) or opt for a shorter transfer time for smaller size proteins (up to 100 kD).
Wet Transfer | Competitor A | Competitor B | eBlot™ L1 | |
---|---|---|---|---|
EGFR (170 KD; from left to right: 20 µg, 10µg, 5µg, 2.5 µg, 1.25 µg) | ||||
Taq (93 KD; from left to right: 125 ng, 62.5 ng, 31.2 ng, 15.6 ng, 7.8 ng) | ||||
GAPDH (36 KD; from left to right: 10 µg, 5 µg, 2.5 µg, 1.25 µg, 0.25 µg) |
Comparative blotting efficiency with various transfer systems. Three different proteins were transferred on to PVDF membranes using traditional wet transfer, Competitor A, Competitor B, and GenScript's eBlot™ L1. The quantities of proteins loaded ranged from 1.25 µg- 20 µg for EGFR, 7.8 ng- 125 ng for Taq, and 0.6 µg- 10µg for GAPDH. For all three proteins, the eBlot™ L1 offered superior transfer efficiency compared to other systems. With its high efficiency of transfer, protein concentrations as low as 7 ng for Taq (lane 5), and as high as 20 µg for EGFR(lane 1) could be clearly visualized.
"This is the first time we have used one of these fast-transfer instruments. I decided to test this one because uses a wet transfer system, rather than semidry, which yields less efficient transfers of large complexes even when using classical transfer systems."
"Our major interest was to minimize the transfer of assembly mitochondrial oxidative phosphorylation complexes and supercomplexes which are large membrane-embedded macrostructures of sizes that range between ~200 kDa and several megadaltons."
-Dr. Antoni Barrientos,Ph.D.
University of Miami Miller School of Medicine
*Figure prepared by Dr. Alba-Timon-Gomez and Dr. Antoni Barrientos. University of Miami School of Medicine
Blue Native (BN)-PAGE analysis of mitochondrial respiratory chain complexes and supercomplexes using an eBlot™ fast and efficient wet transfer from GenScript.
Cellular extracts from HEK293T cells treated with non-targeting (NT) or siRNAs targeting the indicated genes involved in complex IV assembly, prepared in the presence of digitonin, were loaded onto a 3-12% native gradient polyacrylamide gel and separated by BN-PAGE. Following electrophoresis, the proteins were transferred to a pvdf membrane using in 24 minutes, using the Blot L1 protein transfer system from GenScript. To visualize mitochondrial respiratory chain complexes and supercomplexes, the membranes where subsequently decorated with antibodies against COX5B (a complex IV subunit), CORE2 (a complex III subunit) and SDHS (a complex II subunit).
Get 50% off electrophoresis tank when you order eBlot L2 Bundle.
Starter Kit A | Starter Kit B | Starter Kit C | |
---|---|---|---|
eBlot™ L2 Fast Protein Transfer Device | |||
eBlot™ L2 Transfer Basic Kit, Midi | |||
SurePAGE™, Bis-Tris, 10 x 8 | |||
MOPS Running Buffer Powder | |||
PVDF Membrane Midi, 0.22 μm, 8.5 x 13.5 cm | |||
PVDF Membrane Mini, 0.22 μm, 8.5 x 9 cm |
Cat. No. | Product Name | Price |
---|---|---|
L00981 | eBlot™ L2 Fast Protein Transfer Device | Quote |
Cat. No. | Product Name | Quantity | Price | Order |
---|---|---|---|---|
L01015
|
eBlot L2 Transfer Basic Kit, midi |
|
$360.00 1 Kit |
|
Get 60 Mini Gel Transfers for One Promotional Price!
Order 1 eBlot L2 Transfer Basic Kit and 4 packs of PVDF mini membranes for a price of $620.
Cat. No. | Product Name | Quantity | Price | Order |
---|---|---|---|---|
L00735
|
PVDF Membrane, 0.22 μm, 8cmx9cm |
|
$136.00 15 pack |
|
L01015
|
eBlot L2 Transfer Basic Kit, midi |
|
$360.00 1 Kit |
|
Get 30 Midi Gel Transfers for One Promotional Price!
Order 1 eBlot L2 Transfer Basic Kit and 1 pack of PVDF midi membranes for a price of $465.
Cat. No. | Product Name | Quantity | Price | Order |
---|---|---|---|---|
L00990
|
PVDF Membrane Midi, 0.22 μm, 8.5 x 13.5 cm |
|
$320.00 30 pack |
|
L01015
|
eBlot L2 Transfer Basic Kit, midi |
|
$360.00 1 Kit |
|
* Promotional price is automatically applied at checkout.
Fina BioSolutions LLC
"eBlot automated transfer device, which saves us time and generates reliable results. Those are the two key factors we value in your automation products. GenScript's solutions make our daily work schedule very predictable, ensuring timely completion with great reliability and consistency." Read More >>
For more information, or to request a demonstration, please submit the form or email us at [email protected]
