Case Studies

Overview

Production and purification of proteins with biological activity is essential in drug discovery. Multifunctional units at GenScript secure successful delivery of bioactive proteins based on our state-of-the-art equipment and methodologies. A case study below shows groups of protein production and assay development teaming up deliver enzyme with qualified specific activity, higher than customer expected. After modifying the method of cell-breaking, we increase the final yield of protein of interest with purity of above 90%.

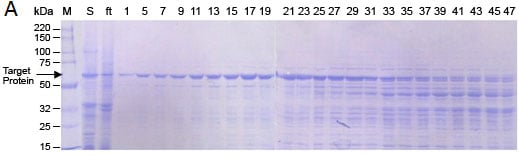

Fig. A: SDS-PAGE analysis of the fractions upon the IEX chromatography

Lane 1-47: Gradient elution fractions

Lane M: Smart Broad-Range Protein Standard (GenScript, Cat. No. MM0906)

Lane S: The supernatant after homogenizer with high pressure

Lane ft: Flow through

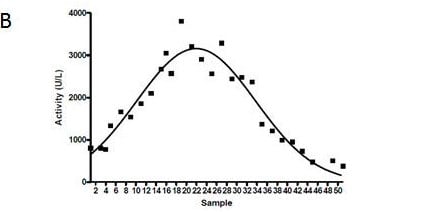

Fig. B: Enzyme assay monitoring the fractionation by DEAE Sepharose

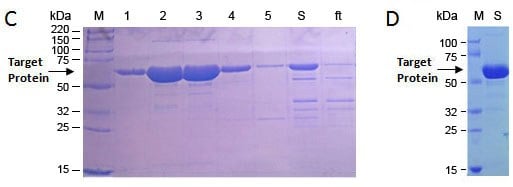

Fig. C: Fractions pooled based on activity analysis for further ADP Sepharose affinity purification

Fig. D: SDS-PAGE analysis of the purified protein

Lane M: Smart Broad-Range Protein Standard (GenScript, Cat. No. MM0906)
Lane S: The supernatant after homogenizer with high pressure
Lane ft: Flow through

Large-scale Endotoxin Free Protein Production

GenScript's protein team has extensive experience in Bacterial Expression And Purification, protein refolding, solubility enhancement, endotoxin removal, and large-scale production.

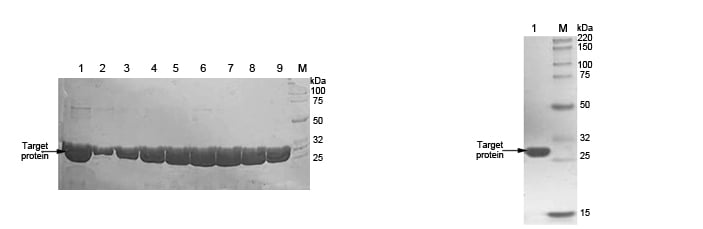

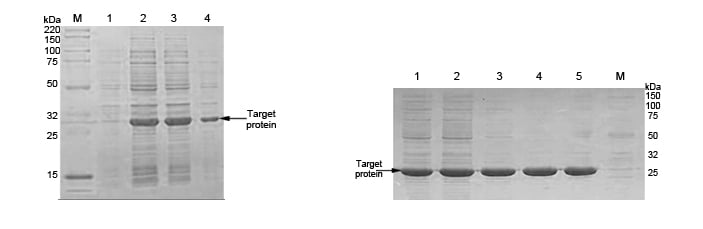

In a recent case, we have obtained 108 mg A fusion protein with >90% purity from 20 L E. coli expression and two-step purification. The concentration is 4.02 mg/ml and the endotoxin level is lower than 0.8 EU/µg.

• GenSmart™ Codon Optimization Tool Technology

  Proven increase in protein expression through optimizing a variety of parameters





  Fig. 1. GenScript OptimumGene™ codon optimization genes increased the yield of expression (8 out of 10 genes) and the degree of solubility in some cases (6 out of 10 genes) compared to the native genes.

  Reference: Burgess-Brown NA, Sharma S, Sobott F, Loenarz C, Oppermann U, Gileadi O. Codon optimization can improve expression of human genes in Escherichia coli: A multi-gene study. Protein Expr Purif. May 2008; 59(1): 94-102

  Significant Increase Drug Target Proteins Expression Level in E.coli.

  Figures below manifested the effectiveness of the OptimumGene™ technology in increasing drug target proteins expression levels for two different genes expressed in E.coli.





  Fig. 2. GenScript's OptimumGene™ codon optimization delivered 10 times higher expression level for protein α compared to non-optimized native gene sequence. The expression level was 3 times more than that from Competitor GA's optimization method.





  Fig. 3. GenScript's OptimumGene™ codon optimization delivered 20 times higher expression level for protein β compared to non-optimized native gene sequence. The expression level was 13 times more than that from Competitor GA's optimization method.

• Co-expression of Protein Complexes

  Purification of macromolecular complex subunits in large quantities and assembling them into functional entities are vital steps for successfully determining the structure and characterizing the functions of macromolecular complexes. Despite the fact that cases of isolation and structure determination of endogenous complexes have been demonstrated, great efforts still lie ahead to make this technology easily accessible. Recent endeavor on this subject suggests that co-expression of subunits within hosts of E.coli and insect cells, even for high-throughput projects, is becoming a promising solution.

  GenScript has successfully co-expressed 3 subunits of A protein in E. coli system:

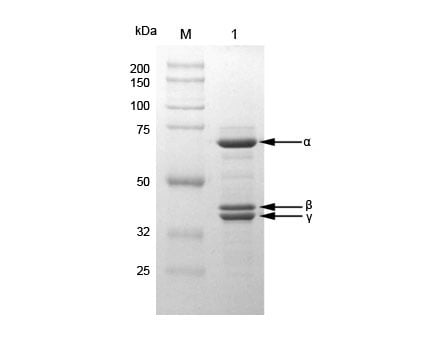

  Fig. A protein with His-tag was analyzed by SDS-PAGE followed by Coomassie Brilliant Blue staining
  Lane M: Smart Broad-Range Protein Standard (GenScript, Cat. No. MM0906)
  Lane 1: A-His-αβγ target protein with His-tag

• BacuVance Baculovirus Expression System

  1. Project evaluation and high secretory expression level (6mg/L)

  Customer's initial request was to synthesize the gene in question and to clone it into our BV vector for intracellular expression. The expected yield was 0.1-1 mg of tagged protein with over 70% purity. Based on a thorough sequence analysis, we designed a new strategy, which was approved by the customer, touse the protein's native signal peptide to drive secretion. In the end, we obtained 3 mg of protein with a purity level over 80% from 0.5 L SF9 CM. The protein's identity was further confirmed by MALDI-TOF.

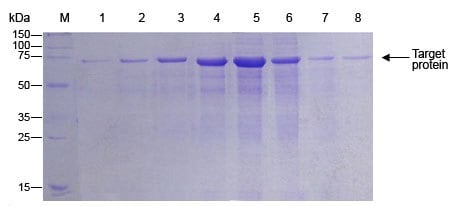

  Fig. A: SDS-PAGE Analysis of target protein purified by SP column
  Lane 1-8: Eluted fractions with 1 M NaCl in 20 mM PB, pH 5.0
  Lane M: Protein Marker

  2. Tag-free protein purification

  After protein expression, the conditioned medium was dialyzed against buffer, and loaded onto SP column. The predicted size of the target protein was 78 kDa. The SDS-PAGE results showed that proteins of the same size as the target had been obtained in lanes 12, 13, 14.

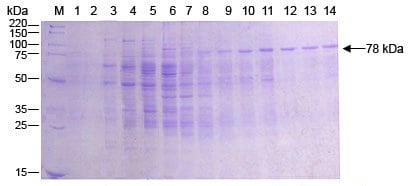

  Fig. B: SDS-PAGE Analysis of target protein purified by SP column
  Lane 1: The condition medium
  Lane 2-14: Eluted fractions with gradient concentration of NaCl from 0 to 500 mM in 20 mM PB, pH 5.0
  Lane M: Protein Marker

• Mammalian Expression System

  GenScript recommends its mammalian expression services for cases in which the folding of the proteins is crucial to the customer's intended application and cases in which the internal machinery of E. coli is unable to express the protein with desired conformation and modification. Our proprietary 293 and CHO suspension system platform promotes fast production and delivery of recombinant proteins and monoclonal antibodies up to grams level.

  1. Monoclonal Antibody Production

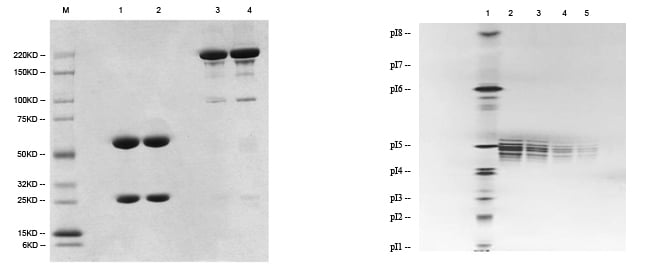

  Fig. 1-1 SDS-PAGE analysis of A Antibody expressed in our mammalian expression system Lane 1 and 2: reduced; Lane 3 and 4: non-reduced

  Fig. 1-2 IEF analysis of A Antibody expressed in our mammalian expression system

  2. Recombinant Protein Expression

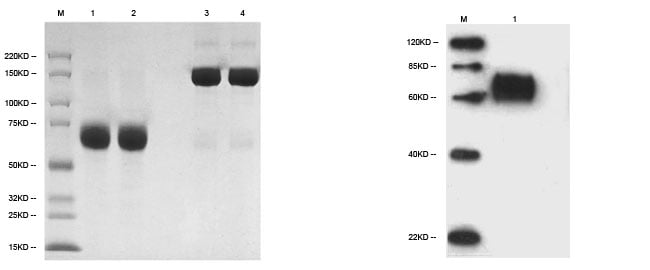

  Fig. 2-1 SDS-PAGE analysis of A Protein expressed in our mammalian expression system Lane 1 and 2: reduced; Lane 3 and 4: non-reduced

  Fig. 2-2 Western Blot analysis of A Protein expressed in our mammalian expression system

  3. Membrane Protein



  Fig. 3 Indirect Immunofluorescence detection of cell membrane protein expressed in our mammalian expression system

• Newly launched TurboCHO™ antibody expression

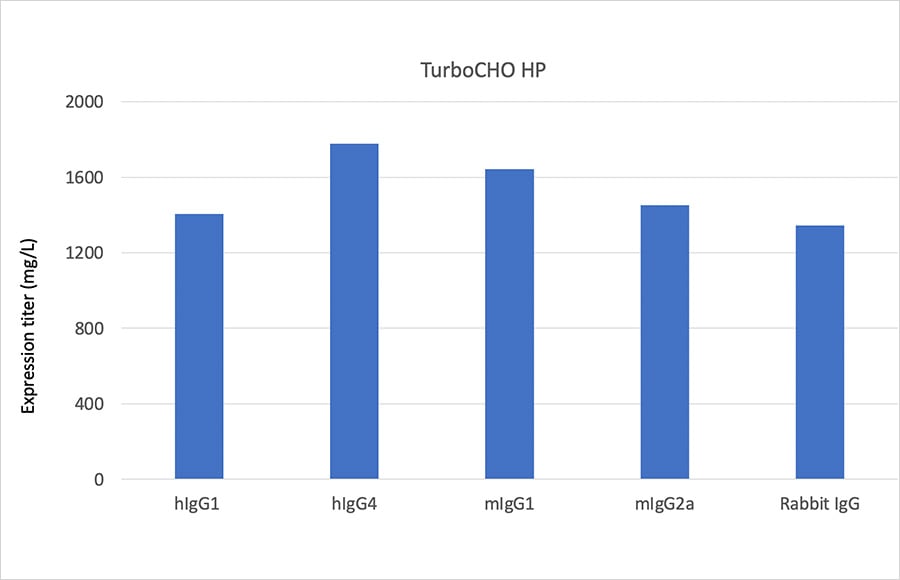

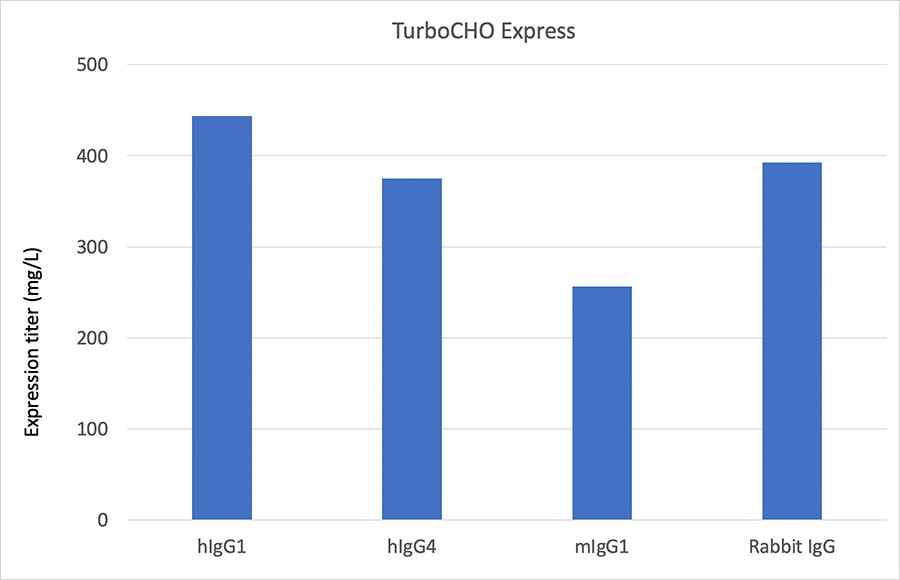

  1. High expression titers of multiple isotypes in different TurboCHO™ platforms

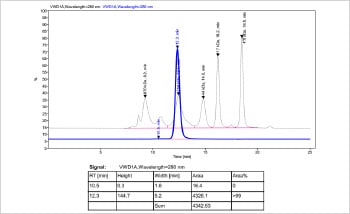

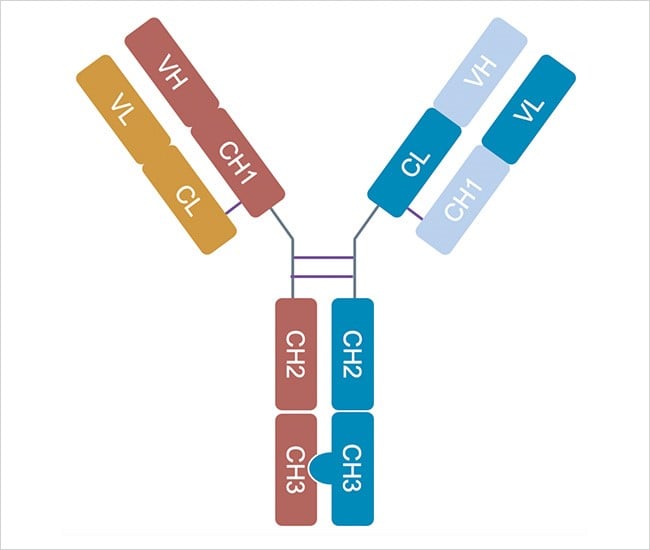

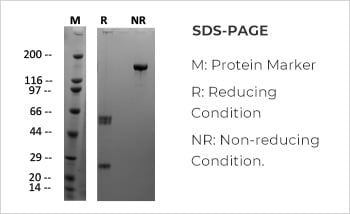

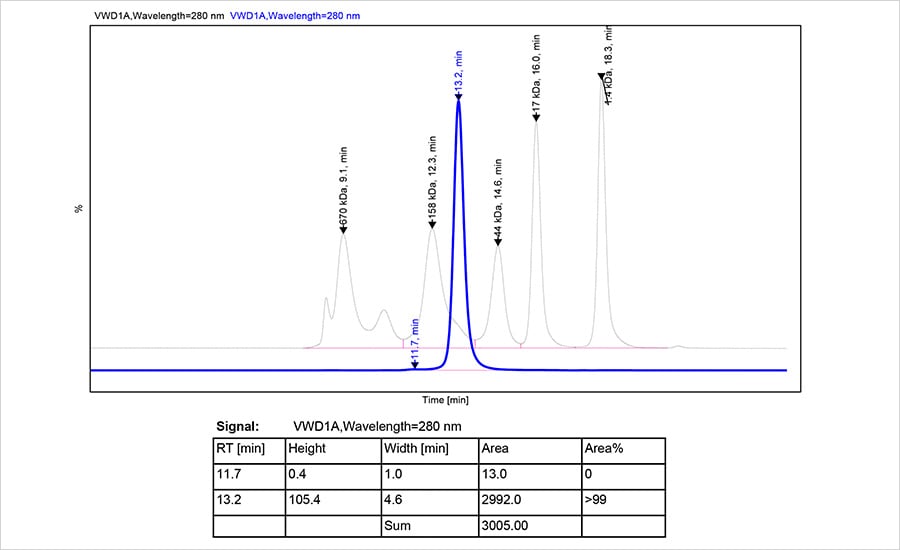

  2.Bispecific Antibody Production, Titer: 374 mg/L with Purity > 99%
