ToxinSensor Endotoxin Detection System

Select Your Kit

GenScript ToxinSensor Chromogenic LAL Endotoxin Assay Kit and ToxinSensor Gel Clot Endotoxin Assay Kit are reliable methods to detect the level of Endotoxins. The procedures in both of these two kits are confirmed with those described in the FDA Guideline.

• Chromogenic LAL Assay

  ToxinSensor Chromogenic LAL Endotoxin Assay Kit: The kit utilizes a modified Limulus Amebocyte Lysate and a synthetic color producing substrate to quantitatively detect endotoxin chromogenically in a broad range (0.01 to 1 EU/ml).

  Click To Load FAQs

  Ordering Information

  Cat. No.	Product Name	Quantity	Price	Order
  L00350	ToxinSensor™ Chromogenic LAL Endotoxin Assay Kit		$110.00 1 Kit (16 rxns) 1 Kit (32 rxns)

  Technical Advantages

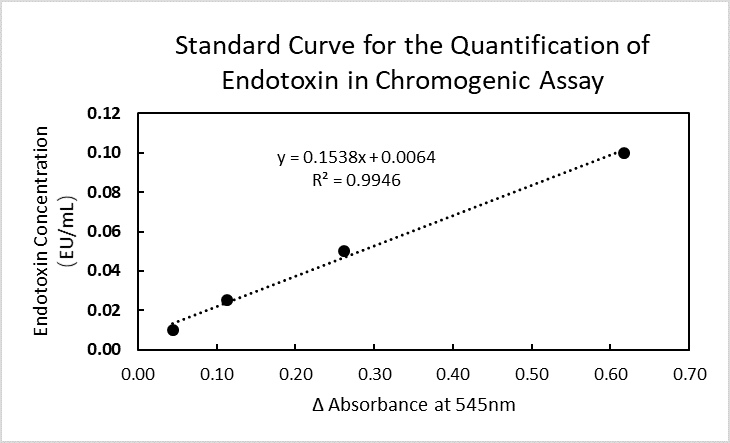

  Under standard conditions, absorbance at 545 nm shows a linear relationship with concentrations in the range of 0.01 - 0.1 EU/ml. The above plot illustrates the absorbance (x-axis) of four standards with their corresponding endotoxin concentration (EU/ml) on the y-axis. A best-fit straight line is drawn among these points to graphically determine the endotoxin concentrations of samples based on their absorbance.

  Examples using following data

  Vial No.	Sample	Absorbance at 545 nm	Δ Absorbance
  1	LAL reagent water (Blank)	0.0525	-
  2	0.01 EU/ml Standard	0.0965	0.0441
  3	0.025 EU/ml Standard	0.1650	0.1125
  4	0.05 EU/ml Standard	0.3139	0.2614
  5	0.1 EU/ml Standard	0.6702	0.6177



  If the mean absorbance of a sample is x, the endotoxin concentration of sample will be 0.1538x+0.0064 EU/ml. Above is only an example curve show, and the OD values of standards may be different with different assays.

• Gel Clot Assay

  ToxinSensor Gel Clot Endotoxin Assay Kit: It is a qualitative test for Gram-negative bacterial endotoxin. Limulus Amebocyte Lysate as supplied is to be reconstituted with LAL Reagent Water and then mixed in equal parts with the solution being tested. After incubation, and in the presence of endotoxin, gelation occurs; in the absence of endotoxin, gelation does not occur.

  Note: For specimen preparation, the specimen should be certified free of Beta Glucans contaminant which may come from yeast and cellulosic materials, such as blood products.

  Click To Load FAQs

  Ordering Information

  Cat. No.	Product Name	Quantity	Price	Order
  L00351	ToxinSensor™ Gel Clot Endotoxin Assay Kit		$147.00 1 Kit

  ToxinSensor Single Test Kit: is designed to be a qualitative In Vitro end-point endotoxin test for human and animal parenteral drugs, biological products, and medical devices.

  Limulus Amebocyte Lysate (LAL) ^{Note: Our LAL reagent is made from amebocyte lysate from the horseshoe crab (Tachypleus tridentatus).} as supplied is to be reconstituted with sample or control directly. There is no need to reconstitute the system with LAL Reagent Water before use. After incubation for 1 hour, and in the presence of endotoxin, gelation occurs; in the absence of endotoxin, gelation does not occur.

  GenScript supply a series of ToxinSensor Single Test Kits with different sensitivity (0.03 EU/ml, 0.06 EU/ml, 0.125 EU/ml and 0.25 EU/ml).

  When using the ToxinSensor Single Test Kit, you just need to add 200µl of sample or control to LAL, then, wait for the required incubation time to allow for gel to be formed.

  Your search returns no product results. Please explore our custom peptide synthesis solutions.

  Assay Example

  Each assay should include both a positive control and a negative control (LAL Reagent Water). Following are application example:

  • Sample: Protein A, 1 mg/ml in PBS, pH 7.4. It is purified from E. coli sonicate by Ni-NTA resin.
  • Dilution by LAL water: 1: 200,000, 1: 400,000, 1: 800,000.
  • The test is performed as described above and the assay result is

  Positive control	Negative control	1: 200,000	1: 400,000	1: 800,000
  +	-	-	+	+

  Endotoxin concentration in this sample is: from 200,000×0.25 to 400,000×0.25, that is, from 50,000 to 100,000 EU/ml.

• Accessory Products

  Cat. No.	Product Name	Quantity	Price	Order
  L00338	ToxinEraser™ Endotoxin Removal Kit		$126.00 1 Kit
  M01063	ToxinSensor™ Endotoxin-free Pipette Tips (1 ml, Blue)		$6.00 1 PK of 6 tips
  M01072	ToxinSensor™ Endotoxin-free Tubes		$22.00 5 Tubes 10 Tubes 40 Tubes
