Industrial Large-scale Antibody Purification
GenScript's Monofinity A Resin is made of a novel recombinant protein A ligand that has a high specific binding capacity to the Fc region of immunoglobulin molecules and enhances chemical stability under Cleaning-in-Place (CIP) conditions.
Protein A affinity chromatography resin is the most commonly applied tool for the isolation and purification of IgG. Protein A is a cell wall component found in several strains of Staphylococcus aureus . It has five high affinity binding sites capable of binding specifically to the Fc region of immunoglobulin molecules from several species. Covalently immobilized Protein A matrices have been extensively used to purify IgG from several species of mammals.
- Novel Protein A ligand withstands CIP procedures with 0.1 to 0.5 M NaOH.
- Easy CIP, reduces the contamination and impurity level.
- Consistent performance with extremely low ligand leakage.
- Dynamic binding capacity over 30 mg/ml under experimental condition.
- Can be used for commercial manufacture of monoclonal antibodies.
- Significantly reduces overall process costs.
Free sample of 1 ml or 5 ml snap column is available upon request via freesample@genscript.com.
Ordering information
| Cat. No. | Product Name | Quantity | Price |
|---|---|---|---|
L00433-55 |
Monofinity A Resin Prepacked Column 1mlx1 - 5 ml prepacked x 5 |
$1809.00 |
|
L00433-51 |
Monofinity A Resin Prepacked Column 1mlx1 - 5 ml prepacked x 1 |
$499.00 |
|
L00433-5 |
Monofinity A Resin - 5 L Resin (Total 10 L) | - | |
L00433-25 |
Monofinity A Resin - 25 ml Resin (Total 50 ml) |
$1680.00 |
|
L00433-200 |
Monofinity A Resin - 200 ml Resin (Total 400 ml) |
$3350.00 |
|
L00433-15 |
Monofinity A Resin Prepacked Column 1mlx1 - 1 ml prepacked x 5 |
$549.00 |
|
L00433-11 |
Monofinity A Resin Prepacked Column 1mlx1 - 1 ml prepacked x 1 |
$169.00 |
|
L00433-10 |
Monofinity A Resin - 10 L Resin (Total 20 L) | - | |
L00433-1 |
Monofinity A Resin - 1 L Resin (Total 2 L) | - |
Related Products
| Cat. No. | Product Name | Quantity | Price |
|---|---|---|---|
L00430 |
Protein A ELISA Kit - 1 kit |
$550.00 |
|
L00210 |
Protein A Resin - 5 ml Resin (Total 10 ml) |
$107.80 |
|
L00209 |
Protein G Resin - 5 ml Resin (Total 10 ml) |
$129.00 |
|
L00239 |
Protein L Resin - 2.5 ml Resin (Total 5 ml) |
$159.50 |
|
L00350 |
ToxinSensor™ Chromogenic LAL Endotoxin Assay Kit - 1 Kit (32 rxns) |
$170.00 |
|
L00351 |
ToxinSensor™ Gel Clot Endotoxin Assay Kit - 1 kit |
$103.00 |
|
L00338 |
ToxinEraser™ Endotoxin Removal Kit - 1 Kit |
$126.00 |
In the biopharmaceutical industry, in order to ensure high quality of products, it is often necessary to carry out clean-in-place (CIP) of chromatography systems. While the column efficiency and transfer rate of the column are also reduced due to the irreversible precipitation of denatured proteins, lipids, and DNA molecules in the sample.
0.1-1 N NaOH can effectively solve the above problems. In addition to sterilizing and inactivating viruses, it can also dissolve denatured proteins, lipids, and DNA molecules deposited on the top of the column, to extend the service life chromatography media. However, natural or recombinant protein A ligands are not tolerant to NaOH, easily getting denatured or shed.
Alkaline-tolerant Protein A Affinity Chromatography Media (Monofinity A Resin, Cat. No. L00433) is alkali-resistant Protein A affinity purification media developed by Genscript to meet the market needs. The product is made of specially engineered alkali-resistant Protein A ligand cross-linked to a novel agarose gel matrix. It has high dynamic binding capacity and low level of ligand shedding, which is suitable for purification of industrial-grade monoclonal antibodies and therapeutic Fc-Fusion proteins.
Specification
Product Name |
Monofinity A Resin |
|---|---|
Composition |
Highly cross-linked 4% agarose |
Average Particle Size |
90 μm |
Ligand |
Alkali-tolerant recombinant protein A (E. coli) |
Dynamic Binding Capacity (DBC) |
30 mg human lgG/ ml (4 min RT with sample hIgG concentration at 5 mg/ ml) |
Ligand Leakage |
<10 ng/ mg |
Pressure/Flow Specification |
0.3 MPa/ ~1200 cm/ h |
Recommended Flow Rate |
50 to 300 cm/ h |
Chemical Stability |
Stable in all commonly used buffers |
pH Working Range |
3-12 |
CIP Stability |
0.1-0.5 M NaOH |
Storage |
20% Ethanol, 2-8℃ |
Example
Lane M: Protein Standard
Lane 1: Purified antibody under reducing conditions
Lane 2: Purified antibody under non-reducing conditions
Figure 1. Electrophoresis of humanized IgG purified from cell culture supernatant by Monofinity A Resin
Dynamic Binding Capacity Performance

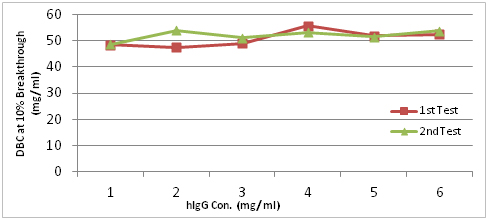

Figure 2. Dynamic binding capacity (DBC) versus sample concentration

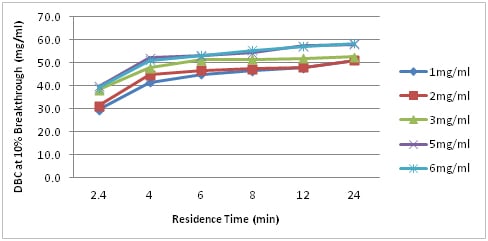

Figure 3. Dynamic binding capacity (DBC) versus residence time

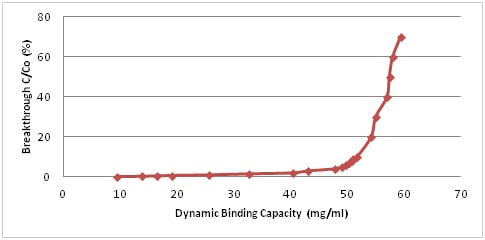

Figure 4. Breakthrough curve with 5mg/ ml hIgG
Protein A Leaching

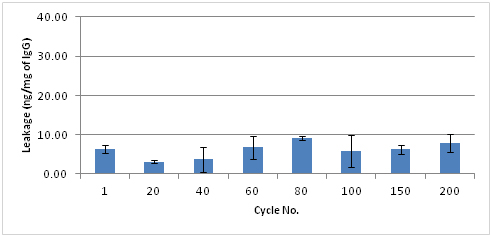

Figure 5. Protein A leakage measured at different cycles of CIP (4 batches)
Stability & Storage

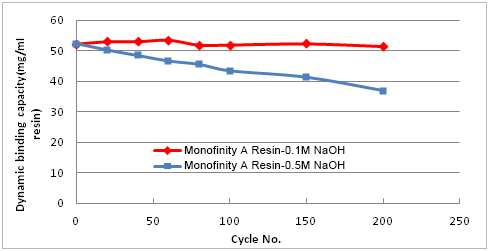

Figure 6. Dynamic binding capacity stability of Monofinity A Resin for 200 cycles of CIP (0.1M-0.5 M NaOH)

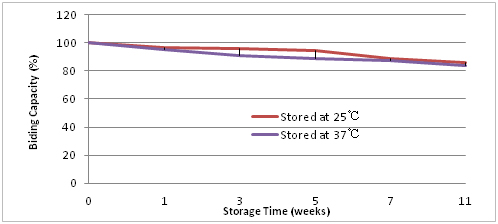

Figure 7. Shelf life of Monofinity A Resin under different storage conditions
